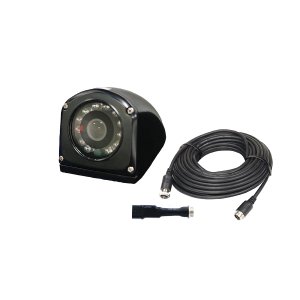

Right-Side View Camera For installation with the Panasonic Infotainment systems for Kenworth and Peterbilt. Camera installation requires the
PP207341 harness.
Features:
- Metal-Cased Mobile Side View with Fixed Lens
- Low Power Consumption
- Easy Installation
- IP69K Waterproof
- Image Sensor: 1/2.8" IMX 307
- TV System: PAL/NTSC (Optional)
- Picture Elements: 1280 (H) x 720 (V)
- Sensitivity: 0 Lux (IR LED on)
- Synchronization: Internal
- Auto Gain Control (AGC): Auto
- Electronic Shutter: Auto
- Back Light Compensation: Auto
- Infrared Spectrum: 850 nm
- Infrared LED: 12 LEDs
- Video Output:1 Vp-p,75Ω,TVI
- ICR: Available
- Noise Reduction: 3D
- Lens: f2.8mm Megapixel
- Tilt Adjusting: 5° and 15° adapter available
- Power Supply: 12V DC±10%
- Power Consumption: 225mA(Max)
- Dimensions (L x W x H):76.4 x 60.5 x 56 mm
- Net Weight: 215 g
- Weatherproof/Waterproof:IP69K
- Operating Temperature-30°C to +70°C
